BUSCH ZFB 32/75 Automatic Banding Machine (2018) TK072311 Sold

BUSCH ZFB 32/75

Automatic Banding Machine;

Ref.: TK072311
Year of production: 2018;
Manufacturer: Gerhard Busch GmbH (Germany)

Available immediately;
Very good technical condition,
Only one user;
Checked and cleaned;
Possibility to carry out tests during the inspection;

Equipment:

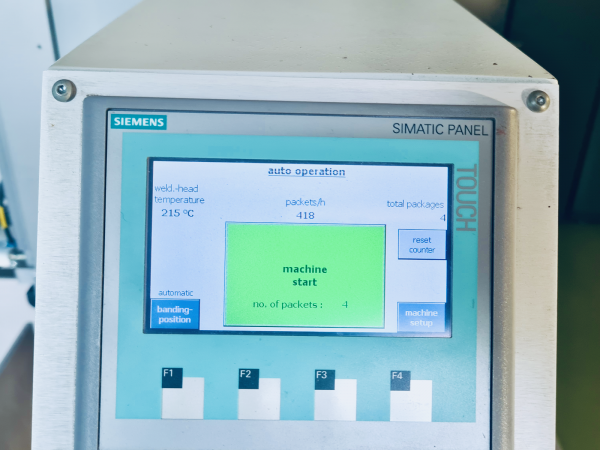

Intuitive central touchscreen control;
Optimized product alignment;
Quick tape reel exchange;
Adjustment of the banding tension on the touchscreen;

Technical Features:
Banding with Kraft Paper Tape or Polypropylene Tape
Tape width: 30 mm
Tape length: 70g paper – 800 m / 80µm PP foil – 1200 m
Machine speed: 16 – 18 strokes / minute
Dimensions of products to be banded:
  Length: 70 – 750 mm
  Width: 40 – 320 mm
  Height: ~5 – 180 mm
Max. no. of strokes in one cycle: 10

Dimensions:
Length: 1680 mm
Width: 730 mm
Height: 1435 mm
Weight: ca. 235 kg

Power supply: 230V – 50Hz/ 1Ph+N+E / 4,0 A
Pneumatic supply: 6BAR, 14 L/min
