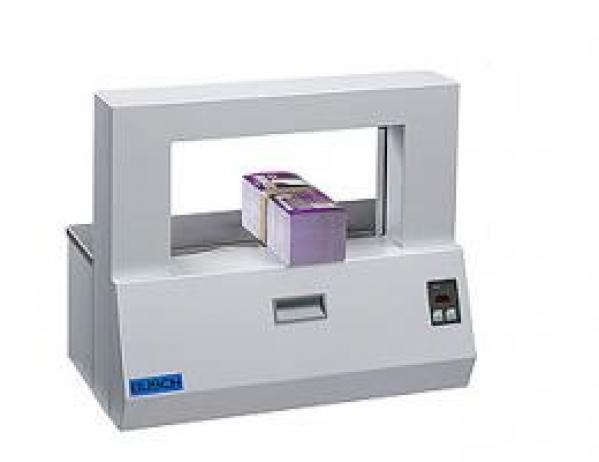

Table Banding Machine BUSCH
Thousands of BUSCH table banding machines have been sold.
Due to their high reliability and ease of handling they are well prepared even for difficult banding tasks. The electronically controlled units are noted for their user-friendliness, versatility

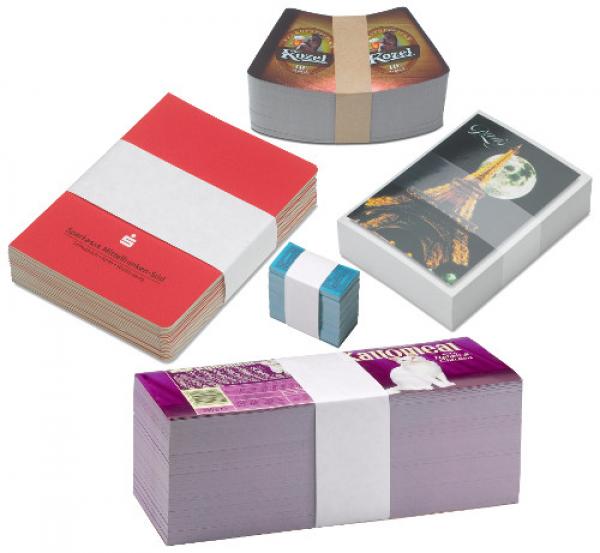

and outstanding durability. The table top bander bands products of all sorts. It is used not only in printing houses, but also other industries are convinced of its performance for different applications. Even banks use the machine for banding loose bank notes. Banding is done either with brown or white kraft paper tape, PE-coated on one side, or with transparent polypropylene foil (PP) in various tape widths. The integrated electronic temperature control guarantees a regular sealing temperature, identical for both kraft paper and foil. Voltage fluctuations on the mains supply are compensated for. The loop size, tape tension and time delay for releasing the banding process in automatic mode are adjustable. The digital display indicates the sealing temperature, time delay and error codes. After feeding the material for banding the kraft paper or foil tape is drawn softly around the package and the tape ends lying on top of each other are sealed. For high volume production a movable large reel stand is offered; the height of the stand is easily adjustable.
All BUSCH machines are produced exclusively in Germany.
This includes the production of parts, control boards and the complete assembly.
TABLE BANDING MACHINES
Maximum output from the minimum area:
» location-independent
» reliable
» user-friendly
» versatile
Proven performance within the smallest space
>> highest reliability and multi-purpose use
>> very user friendly due to adjustable side and rear stops and easy tape reel exchange
>> electronic sealing temperature control guarantees constantly perfect banding results
>> loop size, tape tension and time delay for releasing the banding process in automatic mode are adjustable
Activating the banding process:
>> single stroke activated by push-button
>> single stroke activated by foot pedal
>> automatic activation by sensor
Option:

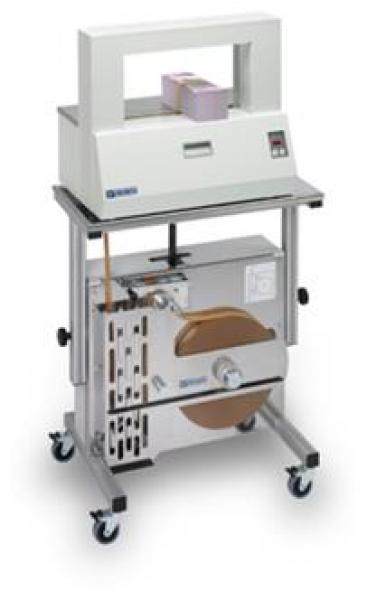

Large Reel Stand GRS, mobile and height-adjustable
>> reduces the number of reel changes for high volume production
>> very flexible use because of 4 movable casters, two of which can be fixed
>> height-adjustable (663 – 932 mm) for an operator- friendly working height
>> only one electrical connection for banding machine and large reel stand

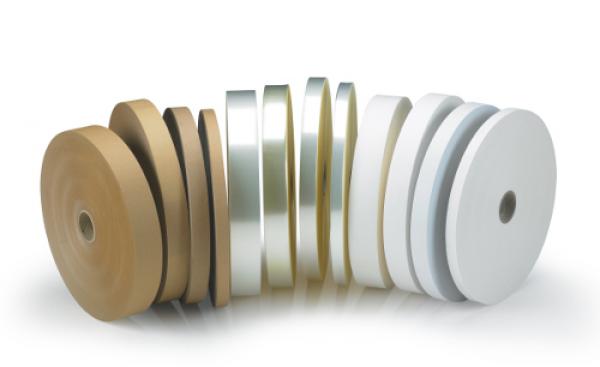

Banding with large reels
>> Kraft paper tape (reel length: 800 m)
>> Polypropylene foil (reel length: 1000 m)
>> inner reel core diameter: Ø 50 mm
>> outer diameter: Ø approx. 160 mm

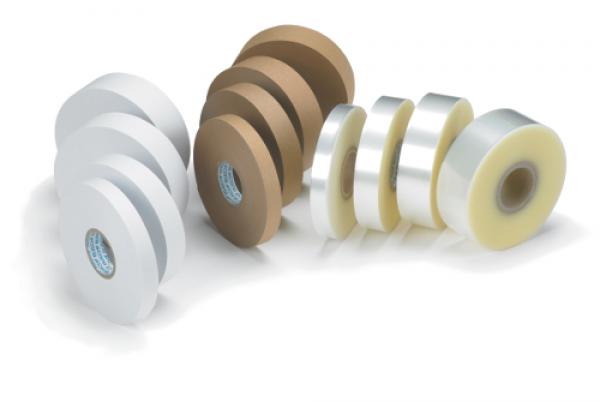

Banding with BUSCH Banding Material
Model TB 39-30 for 30 mm tape width
Model TB 39-50 for 50 mm tape width
>> perfect banding results with high-class banding material from Gerhard Busch GmbH
>> banding with coated Kraft Paper Tape or transparent Polypropylene Foil Tape
>> made-up in Germany
|

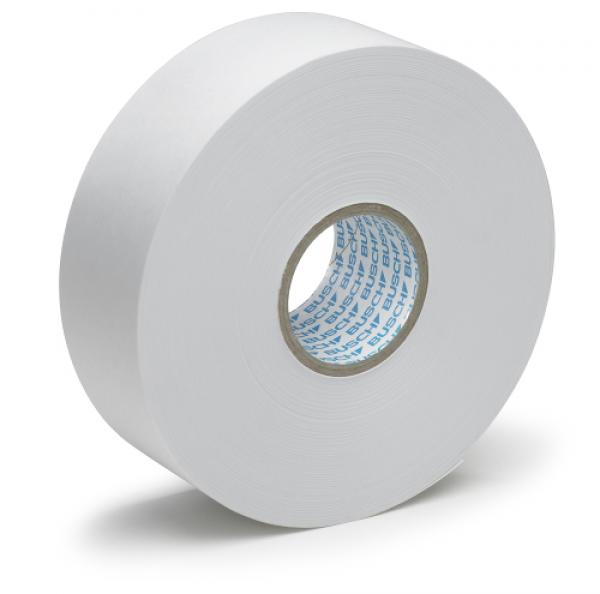

Kraft Paper Tape |
Polypropylene (PP) Foil Tape |
|||
|
colour |
brown |
white |
transparent |
|
|
quality |
70 g paper coated on one side with 23 g of Polyethylene (PE) |
PP 100 μm (recommended due to higher loop stability) |
PP 80 μm |
|
|
reel length |
approx. 150 m |
approx. 150 m |
approx. 200 m |
|
Small reels for insertation in Table Banding Machine
>> inner reel core diameter: Ø 50 mm
>> outer diameter: Ø approx. 160 mm
Technical Data:
|
|
TB 39-30 |
TB 39-50 |
|
|
Tape width: |
30 mm |
50 mm |
|
|
Machine output: |
16–20 strokes / min. |
16-20 strokes / min. |
|
|
Max. dimensions of products to be banded |
length
width
height |
unlimited
390 mm for banding with Kraft Paper Tape 390 mm for banding with Kraft Paper Tape
200 mm |
|
|
Machine dimensions:
|
length width height |
600 mm 390 mm 510 mm |
600 mm 450 mm 510 mm |
|
Weight: |
net / gross |
33 /39 kg |
35 / 41 kg |
|
Sound pressure level as per EN 13023: 2003 |
|
max. 75 dB(A) |
|
|
Power requirements: (A.C. single-phase) |
230 V, 50 Hz 110 V, 60 Hz |
380 W 480 W |
|
|
Power consumption: |
230 V, 50 Hz 110 V, 60 Hz |
1,0 A 1,6 A |
|
Option: positon stops for products.
