A construction set
system of the future in 16 variations - perfect in technology and performance!

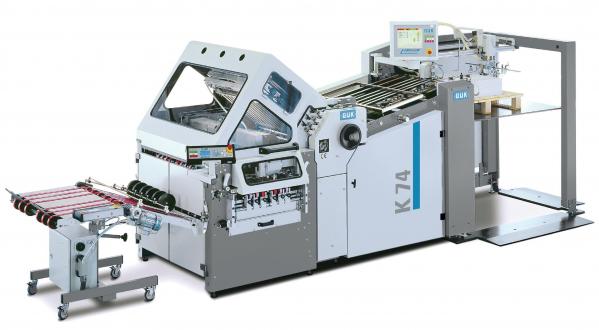

The high-capacity folding
machine for plane-sheet format
540 x 800 mm, quick and easy for setting - short times of setup and adjustment.
Technical features:
- Electronical adjustment
of sheet separation as well as pile-lifting automation in the flat pile feeder
- Wear resistant pocket
infeeds and sheet shunts
- Highest performance by
automatic impulse-adjustment by using electronically controlled folding
knives
- Connected knife shafts
with changeable tools - also by doing cross folds
- Folding pockets-fine
adjustment with indicator watch
- Automatic roller
adjustment by paper strips on all folding units
- New flat pile feeder with
rocking sucker guarantee safe sheet separation also by highest performance
of 40 000 sheets/h
- Absolute stability of the
folding rollers by installation of additional presssion bearings
- Mobile chute delivery
with continuous adjustment as well as with simple quick-adjustment of
height without spindle or wire, with incorporated gas pression springs
- Combined folding unit
- Smallest fold normal execution
45mm
- Smallest fold special execution 25mm
Special accessories:
- Sound reduction attachment
- Batch counter with performance indicator
- Glueing device with electronic control
- Counter for passing through
- Strip cutting device
- Gate folding pocket
- Crimping device
- Kicker
- Edge cutting device
- Pressing and standing sheet delivery
