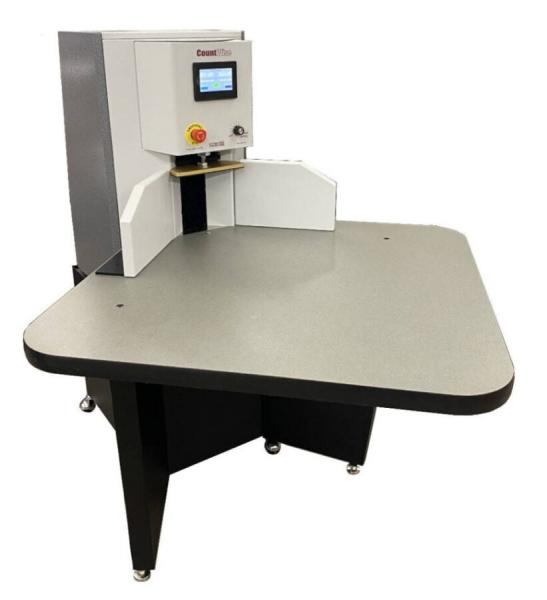

Sheet Counter & Batch Tabber High Value Choice for High Volume Applications
STANDARD FEATURES
•Counting speeds up to 2500 CPM
•Tab insertion from 3 to 9999 sheets
•Two jogging plates
•One-button initiation
•Modular construction
•Large electronic displays (LED)
•Six-digit totalizer
•Six-digit batch counter
•Plug-in components
•Solid State electronics
•Low tape warning indicator
•Readily available parts
•36" x 36" (91 cm x 91 cm) air-flotation table
(Counting surface 32" x 32")
APPLICATIONS
•Exact count deliveries
•Maximize efficiency
•Control quantity at every stage
•Fast, accurate tabbing
•Eliminate re-runs and miscounts
•Stop overages and shortages
•Improve customer satisfaction
•Eliminate quantity disputes
•Provide competitive quotes
•Check incoming supplies
SPECIFICATIONS
Net Weight ..........................................310 lbs (141 Kg)
Height......................................................55" (139.7 cm)
Width ......................................................42" (106.6 cm)
Depth..........................................................59" (150 cm)
Throat Height ................................................8" (20 cm)
Table Size ............................36" x 36" (91 cm x 91 cm)
Sheet Size Minimum ..........2.25" x 4" (5.7 cm x 10 cm)
Paper Range ......................12 lb bond up to .010 stock
(25 g/m2 up to 250 g/m2)
Dependent upon paper substance & flexibility
Electrical ......120V AC, 10A or 220/240V AC, 50/60 Hz
