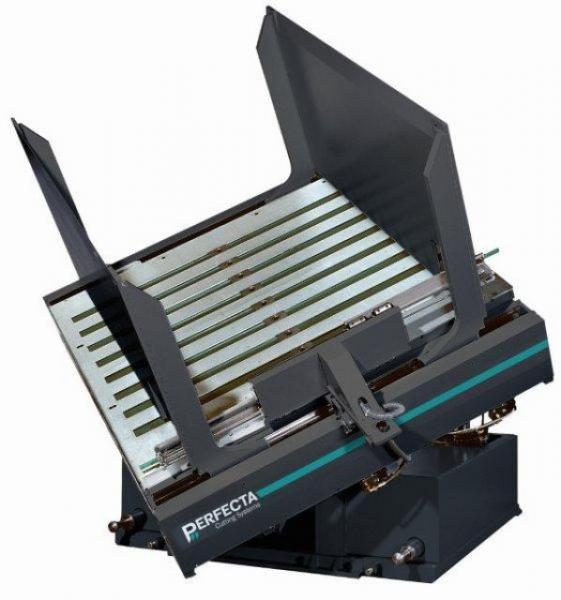

The use of PERFECTA pile turners ensures easier moving and changing of pallets. Powerful and adjustable blowers with big nozzles that can also be closed support the motor-driven and fully automatic turning process, the vibration intensity of which can be varied. A fence and a light barrier ensure safety at the entrance.
Technical data
|
model |
BSW 3-1000 |
BSW 3-1200 |
BSW 6-2000 |
BSW 7-2000 |
BSW 8-2000 |
BSW 10-2200 |
|
Min. sheet format |
500 x 650 mm |
500 x 650 mm |
700 x 1000 mm |
700 x 1000 mm |
700 x 1000 mm |
700 x 1000 mm |
|
Max. sheet format |
800 x 1200 mm |
800 x 1200 mm |
1050 x 1450 mm |
1200 x 1650 mm |
1200 x 1850 mm |
1525 x 2050 mm |
|
Min. pile height |
630 mm |
720 mm |
720 mm |
800 mm |
800 mm |
800 mm |
|
Max. pile height |
1450 mm |
2020 mm |
2020 mm |
2020 mm |
2020 mm |
2020 mm |
|
Max. pile weight |
1000 kg |
1200 kg |
2000 kg |
2000 kg |
2000 kg |
2200 kg |
|
Version D |
- |
- |
x |
x |
x |
x |
|
Version LDV |
x |
x |
x |
x |
x |
x |
