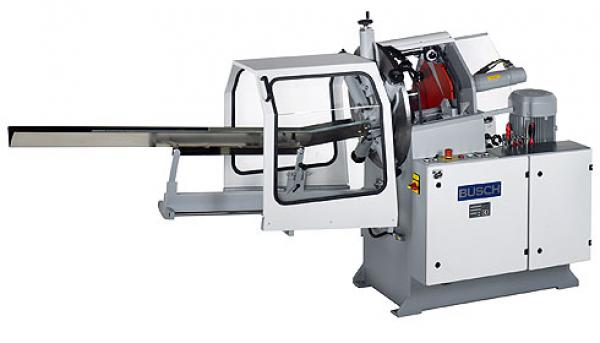

Die-cutting machine BUSCH B and B+P
Machine series B offers a larger cutting size up to 230 x 230 mm and greatly increased punching power. All types of material, especially plastics, can be cut. The machines are used for small and medium runs.
The compact and robust design reflects the increased punching power.The construction and function of both models are identical except the method of releasing the cutting stroke, as specified below. The machines are supplied with 5 adjustable clamping arms, waste slitters and holders which are fitted into the clamping arms – thus being able to reach any required position for slitting the waste. The number of waste slitters needed is determined by the material, size and contour of the product to be die-cut. Once the stack of material is manually inserted the cutting stroke is activated by different functions according to the machine model.
Activation of the cutting stroke:
B by manual closure of the protective door, secured by auto-controlled limit switches.The door opens automatically when the punching ram runs backwards.
B+P by pneumatic closure of the protective door after pressing a push-button on the control panel. The function is secured by autocontrolled limit switches. The door opens automatically when the punching ram runs backwards.
The finished products are pushed onto the delivery tray for removing.
The pneumatic mobile counter-pressure unit for model B or B+P is easy to fit to the die-cutter in place of the delivery tray. The trolley facilitates the removal and storage of the delivery tray which can be refitted quickly for jobs without counter-pressure. Changeover time approx. 20 minutes.The die is especially manufactured for counter-pressure cutting with a movable matrix of plastic or aluminium inside the die. The counter-pressure unit is connected to a compressed air supply. The material is placed in front of the die with the projecting matrix and is held vertically in the die for stabilizing during the hydraulic cut. When the ram reaches the end of its stroke, the finished material is pushed back into the feeding tray by the pneumatic counter-pressure cylinder, from where it is removed. This reduces the throughput of the machine by approx. half.
Technical dates of die-cutting machine:
|
model |
|
B |
B+P |
|
max. die-cut size |
mm |
230 x 230 |
230 x 230 |
|
min. die-cut size min. die-cut size with counter-pressure |
mm mm |
10 x 10 30 x 30 |
10 x 10 30 x 30 |
|
max. diameter for circular products |
mm |
235 |
235 |
|
max. stack height (height of cutting die 60 mm) |
mm |
170 |
170 |
|
die-cutting pressure |
kg |
5.700 |
5.700 |
|
die-cutting strokes 1) |
per min |
11 |
13 |
|
machine output 1) (inserting 1.000 sheets/80gsm) |
sheets/ h |
660.000 |
780.000 |
|
space requirements (length with delivery tray x width x height) |
mm |
3.020 x 840 x 1.630 |
3.020 x 840 x 1.630 |
|
weight |
kg |
855 |
860 |
1) max. achievable output. Die-cutting with counter-pressure reduces the output approx. by half
Technical dates of counter pressure:
|
model for die-cutting machines B, B+P |
|
GD-1 |
|
pneumatic connection: max. compressed air requirements |
nl/min. |
55 |
|
counter-pressure, adjustable |
bar |
0-8 (630 kg) |
|
measurements: length x width x height |
mm |
1.100 x 610 x 1.380 |
|
weight |
kg |
305 |
The use of a counter-pressure unit is recommended:
– when die-cutting embossed paper and plastics (PP or PE foil) for small-sized inmould labels and similar articles to minimize stretching or movement of the material during the cutting process
– when cutting tempered and varnished aluminium foil, e.g. for neck labels
– where tight tolerances are required
