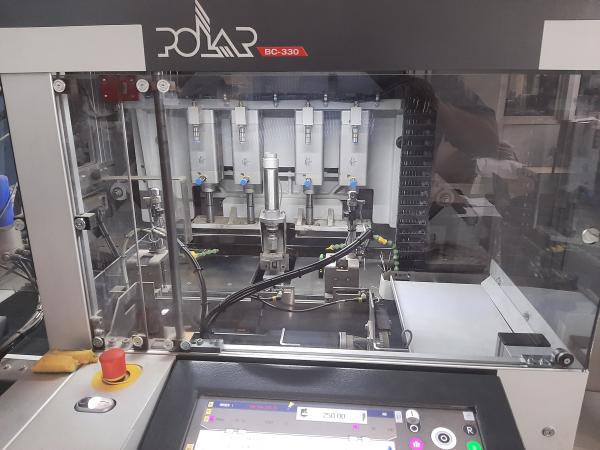

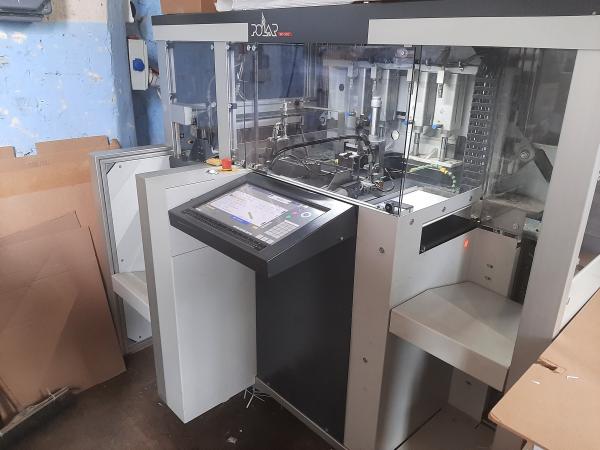

Automatic book and booklet trimmer.
Ref.: KB072105
Year of production: 2015;
Automatic format setting;
Automatic cutting performed by 1 knife;
High-force hydraulic pressure with smooth force adjustment;
Possible integration with workflow management systems;
Material feeding and positioning;
Adjustable book clamping force;
Belt delivery;
18.5 ”touch screen with cutting visualization integrated in the machine;
Barcode reader for reading the program;
Technical data:
Capacity (single block): 220 books / hour;
Productivity (stack of books): 520 books / hour;
Min book thickness: 5 mm;
Max book thickness: 51 mm;
Feeder capacity: 550 mm;
Delivery capacity: 550 mm;
Min format before cutting: 107 x 152 mm;
Max format before cutting: 305 x 330 mm;
Min format after cutting: 105 x 148 mm;
Max format after cutting: 303 x 326 mm;
Minimum cut (top, bottom, side): 2 mm;
Max cut (top, bottom, side): 100 mm;
Machine dimensions (height x width x depth): 1580 x 1820 x 2220 mm;
Machine in production, work test possible;
Well maintained;
Available immediately.
Price: 23.000 EUR ex-works
