Ref.: MM032302
Year of production: 2010
Manufacturer: GUK-Falzmaschinen Griesser & Kunzmann GmbH & Co. KG
Machine availability – on request;
Machine in use; possibility to carry out work tests during inspections;
Good technical condition;
CE marked machine.

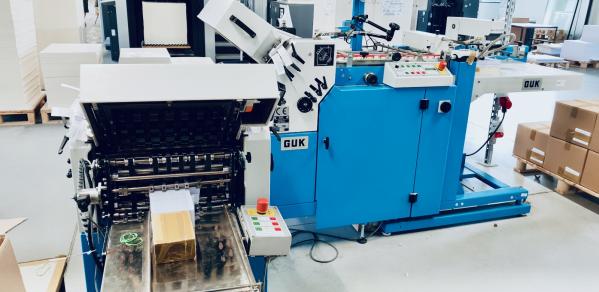

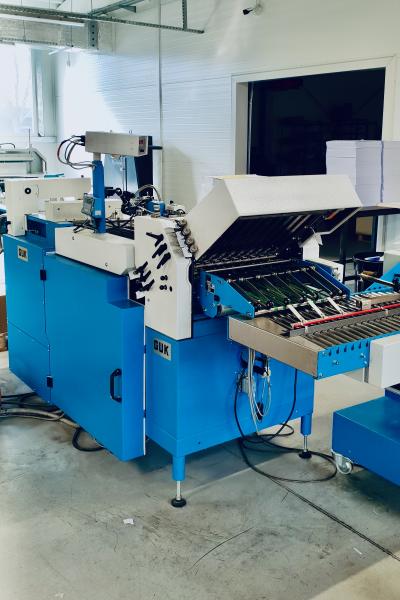

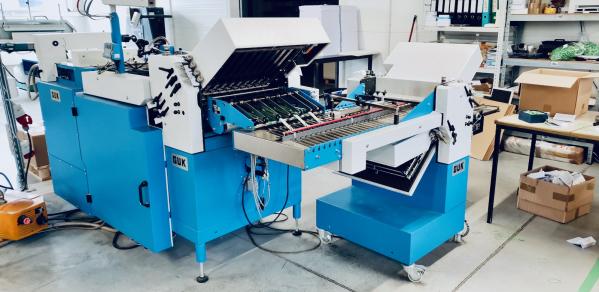

Folding machine manufactured by the renowned German company GUK equipped with a high pile feeder (sheet picking with a suction roller from above) FL2-45, 2 folding aggregates, pocket with maximum working widths of 46 and 36 cm respectively and lining.
Folding machine GUK model FA 45/6-4 FL2-45 – infeed width 450 mm (6+4 folding pockets).
|
Maximum input format:
|
460 x 650 mm
|
|
Minimum input format:
|
105 x 145 mm
|
|
Maximum paper weight:
|
180 g/m²
|
|
Minimum paper weight:
(the given range of weights does not include all folding schemes)
|
45 g/m².
|
|
Minimum folding length:
|
first fold 26 mm, each subsequent fold 22 mm
|
|
Feed rate of sheets from feeder:
(the production speed depends on the folding scheme, the quality and type of paper and external conditions such as air temperature and humidity)
|
30 - 150 m/min.
|
|
Power supply:
|
400 V/50 Hz
|
Machine equipment:
- High pile feeder FL2-45;
- Side blowers for easy sheet picking;
- Separation head for backloading of sheets with the help of suction cups and additional blowers;
- Automatic electronic height adjustment of the separation head relative to the top edge of the pile;
- Maximum pile height approx. 600 mm.
- Double sheet detector, electromechanical.
- Batch counter.
- Multifunction counter programming the operation of the machine.
- It has a dual digital display. Ability to fold sheets in groups (lots) of the given number in each lot, with stepless adjustment of the spacing between parties. The display shows the total number of falsified sheets, the number of batches of folded sheets and the speed of the machine at any given time.

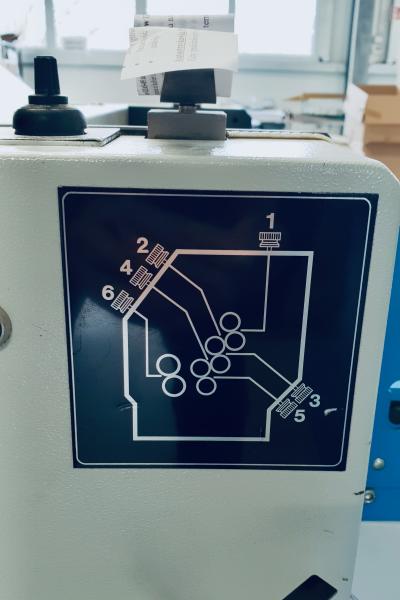

- I folding unit FA 45/6, 6 folding pockets
- All folding pockets with integrated deflectors;
- Automatic setting of rollers using paper strips;
- Perforation, creasing and cutting equipment, 1 tool;
- Hinged chute delivery
- Sound reduction hoods, top and bottom.
- Intermediate transport ZWT 45/2 with indepedend drive.
- II folding unit FA 36/4, 4 folding pockets
- All folding pockets with integrated deflectors;
- Automatic setting of rollers using paper strips;
- Perforation, creasing and cutting equipment, 1 tool;
- Hinged chute delivery
- Sound reduction hoods, top and bottom.
- Vertical stacker KS 310 – passaging width 305 mm;
- For suspension after I or II folding unit;
- Pile height (product) 20 – 115 mm.
- Ejector magnet for marking falsified batches sheets in the KS 310 without stopping the machine.
