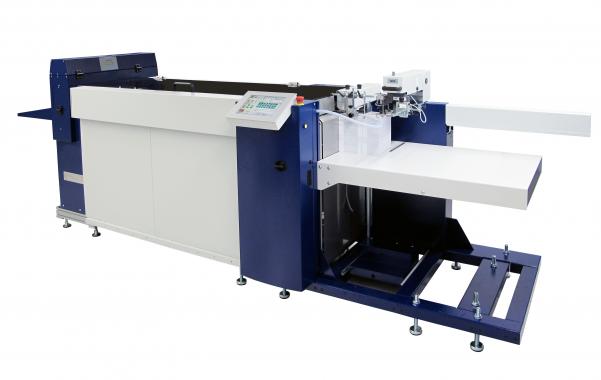

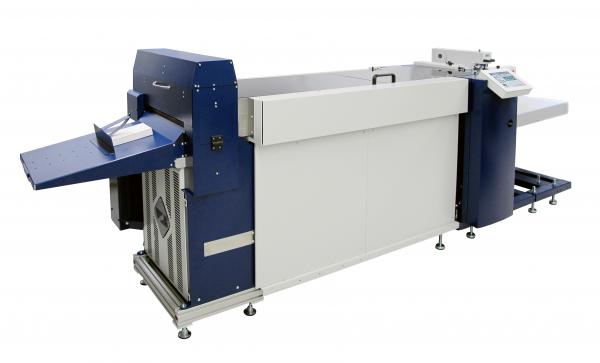

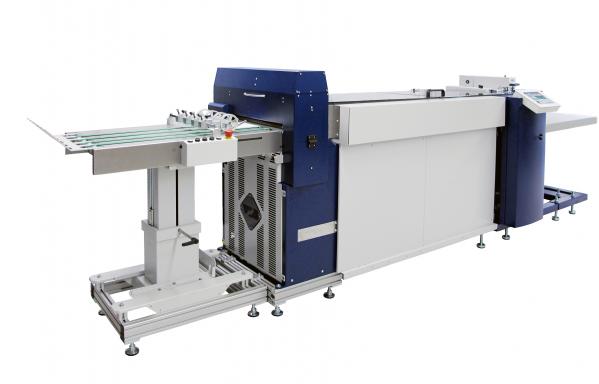

High-performance creasing system MB BÄUERLE-BACCIOTTINI WF DH16000 HIGH PILE

Creasing along the fold line can considerably reduce or even avoid this phenomenon. With the technology used for the Creasing System WFDH 16000, the material is gently compressed, because the excessive stretching of the paper fibres is avoided. This principle prevents cracking of the printing ink or tearing of the paper, thus ensuring optimal after-print processing.

The flat pile feeder allows a high stacking capacity of the material to be processed. Aligning the sheets prior to the creasing process also ensures utmost accuracy in final finishing. The double head drive system of the creasing machine makes it possible to perform two processing steps inline (for instance creasing and perforating). The creasing and perforating system offers maximum operator convenience combined with minimum set up times due to the intelligent machine control, the operation via a centrally located touch screen operator panel with integrated job memory and the high degree of automation.



Technical Specifications:



Max. size:

500 x 1000 mm

Min. size:

100 x 120 mm

Paper weight:

80 – 400 GSM

Speed:

Format A4 portrait, one creasing line

16.000 sheets/h

Elektrical ratings:

3 x 400 V / 50 Hz / N / PE
3 x 208 V / 60 Hz / PE
