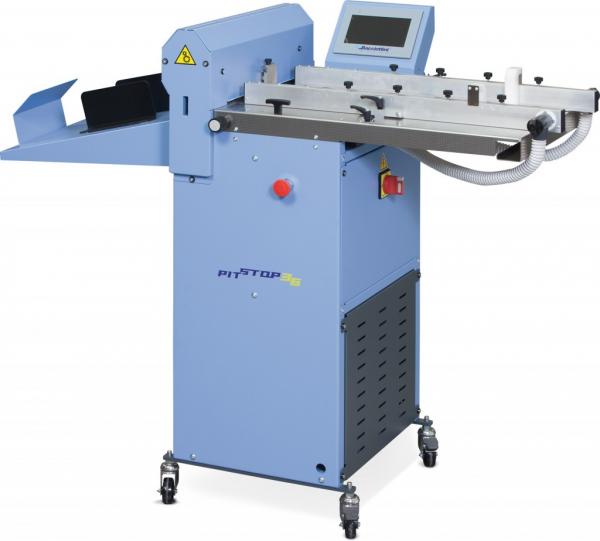

PIT STOP 36 is the automatic perforating & creasing machine with a working width of 36 cm maintaining all the characteristics of reliability and accuracy of any typical machine produced by Bacciottini Group.
The standard paper size is 36 x 65 cm, with an optional
extension feeder for sizes up to 36 x 85 cm.
Designed specifically for print on
demand and digital printing the machine is equipped with a creasing kit using
adhesive matrix, the suction feed is a continuous non-stop feeder using a
rubber suction drum which ensures no marking and perfect performance on a wide
variety of stocks.
Equipped with a user friendly seven inch color touch screen
display for quick, easy set up of all creasing & perforating operations.
Machine is mounted on wheels for easy movement inside a company and helps to maximize space in confined areas. LCD panel version available on request.
Technical Specifications
Size Min: | 8×10 cm |
Size Max: | 36×65 cm (with optional extension feeder 36×85 cm) |
Sheet weight: | 80 a 400 g.s.m. |
Programs: | 20 programs with 20 operations for each program |
Min. distance creasing: | 0,1 mm |
Production A4 with 1 crease: | 6,000 sheets per hour |
Power supply: | 230 Volts 50 Hz single phase |
Power requirement: | 1,5 Kw |
Net weight: | 116 Kg |
Size: | 140x65x116 cm |
Optional: | perforating kit 2/1 – 3/1 – 4/1; standard creasing kit |
